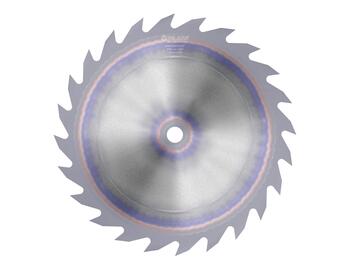

Circular saw blade for wood 5311 A KV22°

» wolf teeth

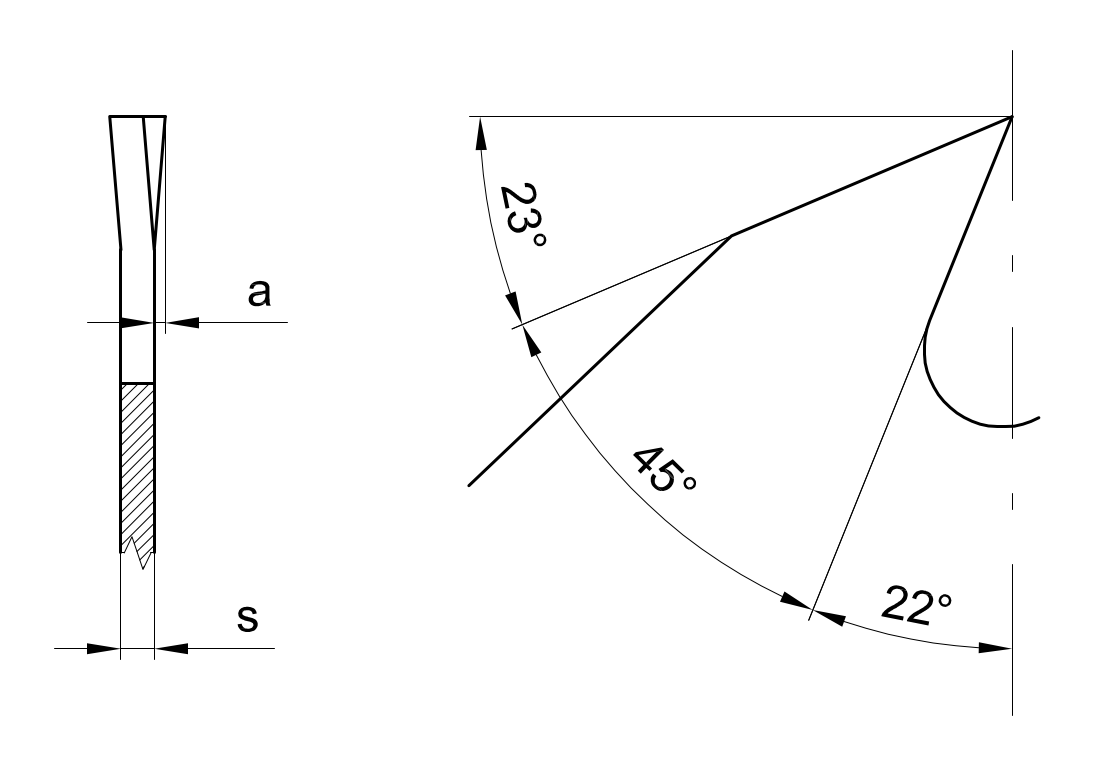

» hook angle = 22°

These saws are tempered during the production process, which reduces undesirable tension in saws and allows them to be used under more demanding operating conditions.
This type of processing is visible on saws through typical blue-black colouring.
Better cutting properties of the saw have been achieved by reducing the number of teeth.
Jamming of the saw with sawdust and consequent overheating does not occur.

Application: For longitudinal cutting of both soft and hard wood. Also suitable for multi rip machines (re-sawing, trimming)

Items:
Description
D
S
d
Z
m
Required quantity
Circular saw blade for wood 250x2,2x30 18 KV22
250 mm
2.20 mm
30.0 mm
18
0.1 kg
Circular saw blade for wood 250x2,2x30 24 KV22
250 mm
2.20 mm
30.0 mm
24
0.1 kg
Circular saw blade for wood 300x2,4x30 18 KV22
300 mm
2.40 mm
30.0 mm
18
0.1 kg
Circular saw blade for wood 300x2,4x30 24 KV22
300 mm
2.40 mm
30.0 mm
24
0.1 kg
Circular saw blade for wood 300x3,0x30 18 KV22
300 mm
3.00 mm
30.0 mm
18
0.1 kg
Circular saw blade for wood 300x3,0x30 24 KV22
300 mm
3.00 mm
30.0 mm
24
0.1 kg
Circular saw blade for wood 350x2,8x30 18 KV22
350 mm
2.80 mm
30.0 mm
18
0.1 kg
Circular saw blade for wood 350x2,8x30 24 KV22
350 mm
2.80 mm
30.0 mm
24
0.1 kg
Circular saw blade for wood 350x3,2x30 18 KV22
350 mm
3.20 mm
30.0 mm
18
0.2 kg
Circular saw blade for wood 350x3,2x30 24 KV22
350 mm
3.20 mm
30.0 mm
24
0.2 kg
Circular saw blade for wood 350x3,5x30 18 KV22
350 mm
3.50 mm
30.0 mm
18
0.2 kg
Circular saw blade for wood 350x3,5x30 24 KV22
350 mm
3.50 mm
30.0 mm
24
0.2 kg
Circular saw blade for wood 400x2,5x30 24 KV22
400 mm
2.50 mm
30.0 mm
24
0.2 kg
Circular saw blade for wood 400x3,0x30 24 KV22
400 mm
3.00 mm
30.0 mm
24
0.2 kg
Circular saw blade for wood 400x3,5x30 24 KV22
400 mm
3.50 mm
30.0 mm
24
0.2 kg
Circular saw blade for wood 450x2,8x30 24 KV22
450 mm
2.80 mm
30.0 mm
24
0.2 kg
Circular saw blade for wood 450x3,5x30 24 KV22
450 mm
3.50 mm
30.0 mm
24
0.3 kg
Circular saw blade for wood 500x3,0x30 28 KV22
500 mm
3.00 mm
30.0 mm
28
0.3 kg
Circular saw blade for wood 500x3,5x30 28 KV22
500 mm
3.50 mm
30.0 mm
28
0.4 kg

Upon agreement, it is also possible to produce customised circular saws with different dimensions and designs.
D = saw blade diameter; S = body thickness; d = clamping hole; z = number of teeth; m = weight
