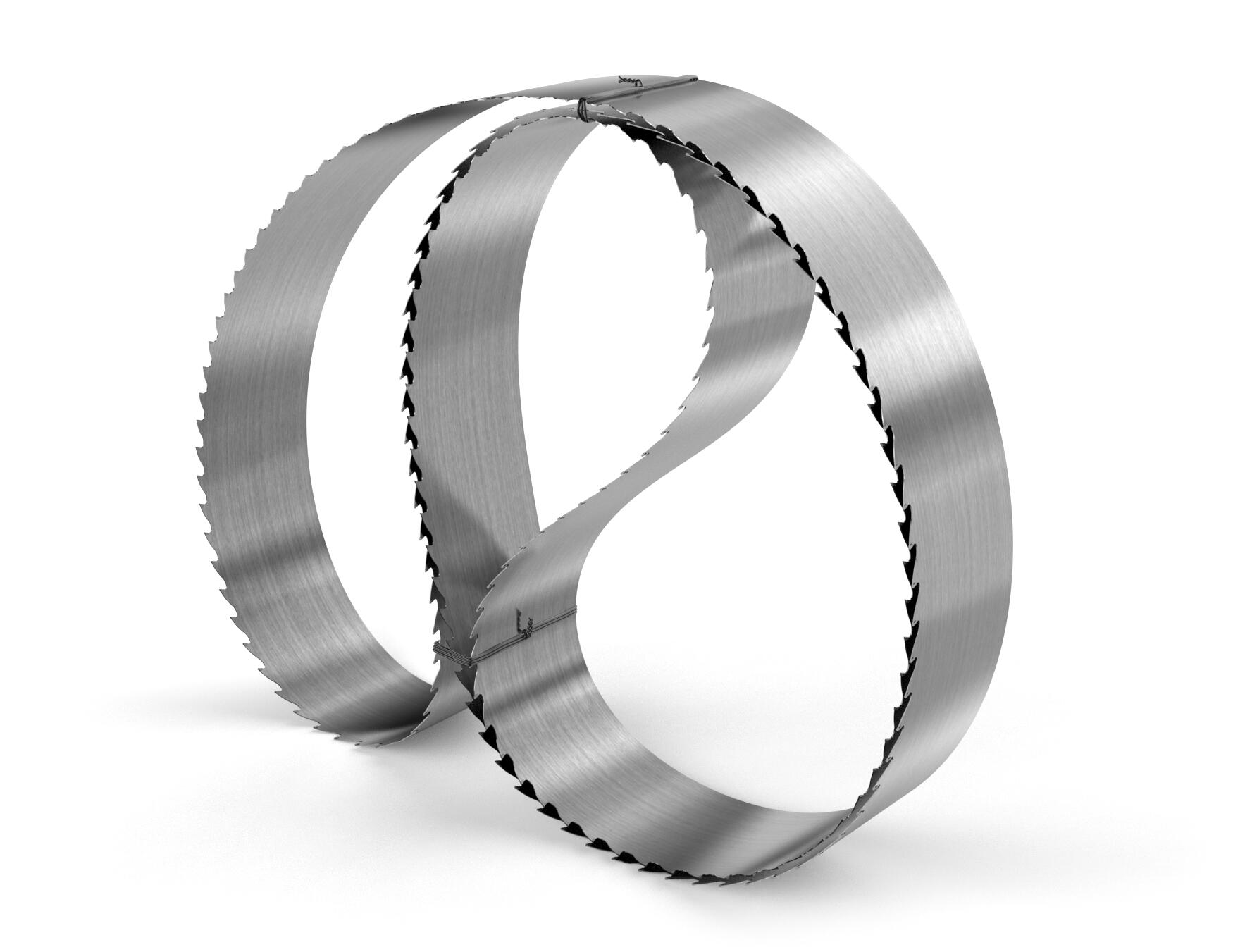

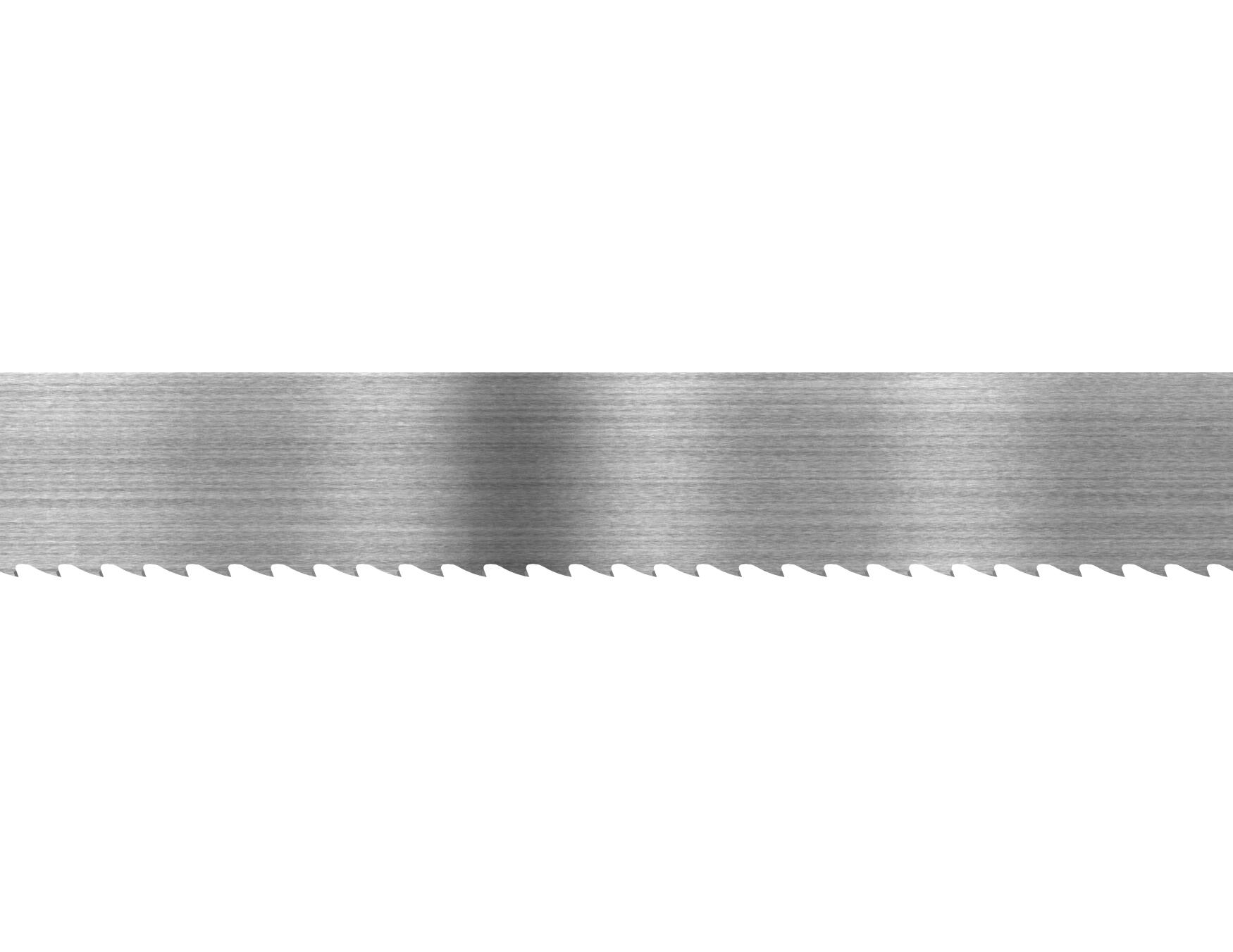

Band saw blades for wood cutting - for setting and sharpening

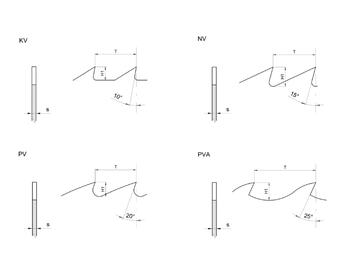

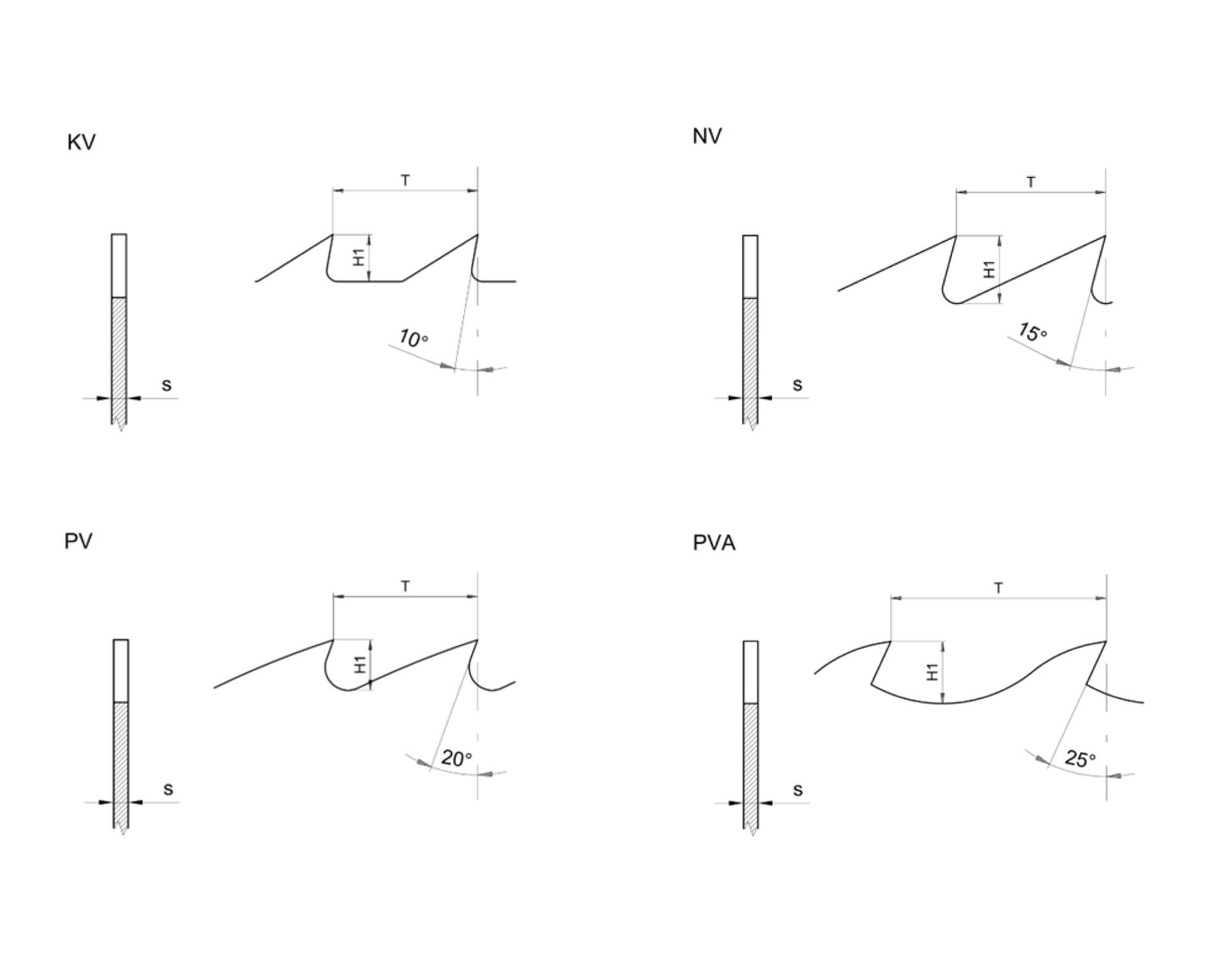

5344 (KV) – wolf teeth
5343 (NV) – triangular teeth
5345 (PV/PV2) – round teeth
5345–PVI (PVI) – PVI round teeth

Application:
For processing both hard and soft wood.
A smaller teeth pitch should be selected for hard wood while a larger teeth pitch should be used for soft wood.

Band Saw Blades are made of Nickel Steel, C75, UDD,Bohler Strip and other materials.
Welded BSB are supplied in Stellite, swaged and set/sharpened modifications ready for use.
We supply BSB toothed only in coils.



KP_Persp
KP všechny
Items:
H
S
Ni Steel
1 m = kg
80 mm
1.00 mm
optional
0.6 kg
90 mm
1.00 mm
optional
0.7 kg
90 mm
1.10 mm
optional
0.7 kg
100 mm
1.10 mm
optional
0.8 kg
110 mm
1.10 mm
optional
0.9 kg
120 mm
1.10 mm
optional
1.0 kg
120 mm
1.20 mm
optional
1.1 kg
140 mm
1.20 mm
optional
1.3 kg
150 mm
1.20 mm
optional
1.4 kg
160 mm
1.40 mm
optional
1.7 kg
180 mm
1.45 mm
optional
2.0 kg
200 mm
1.45 mm
optional
2.2 kg
205 mm
1.45 mm
optional
2.2 kg
230 mm
1.60 mm
optional
2.8 kg
260 mm
1.60 mm
optional
3.1 kg

H = band width; S = body thickness
