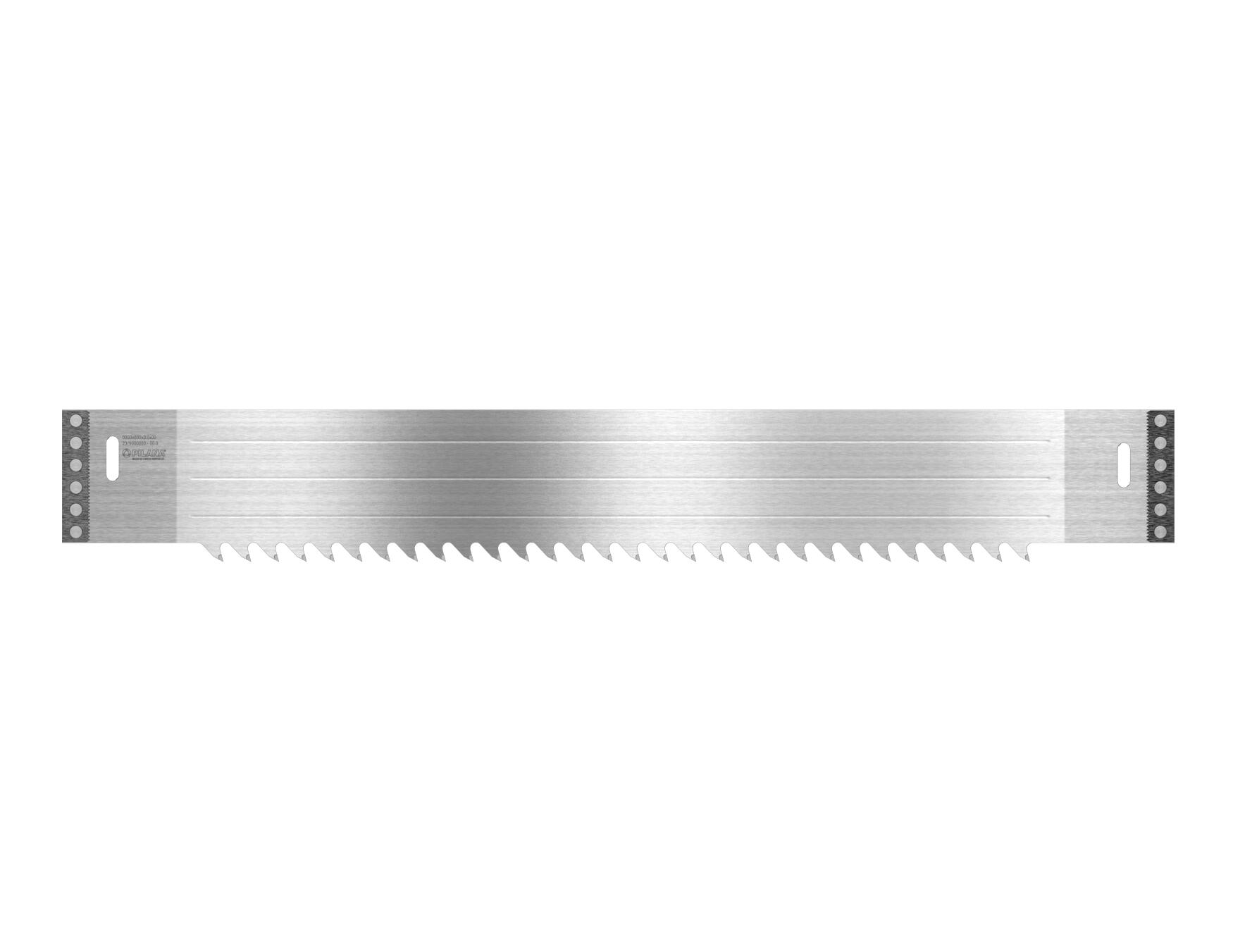

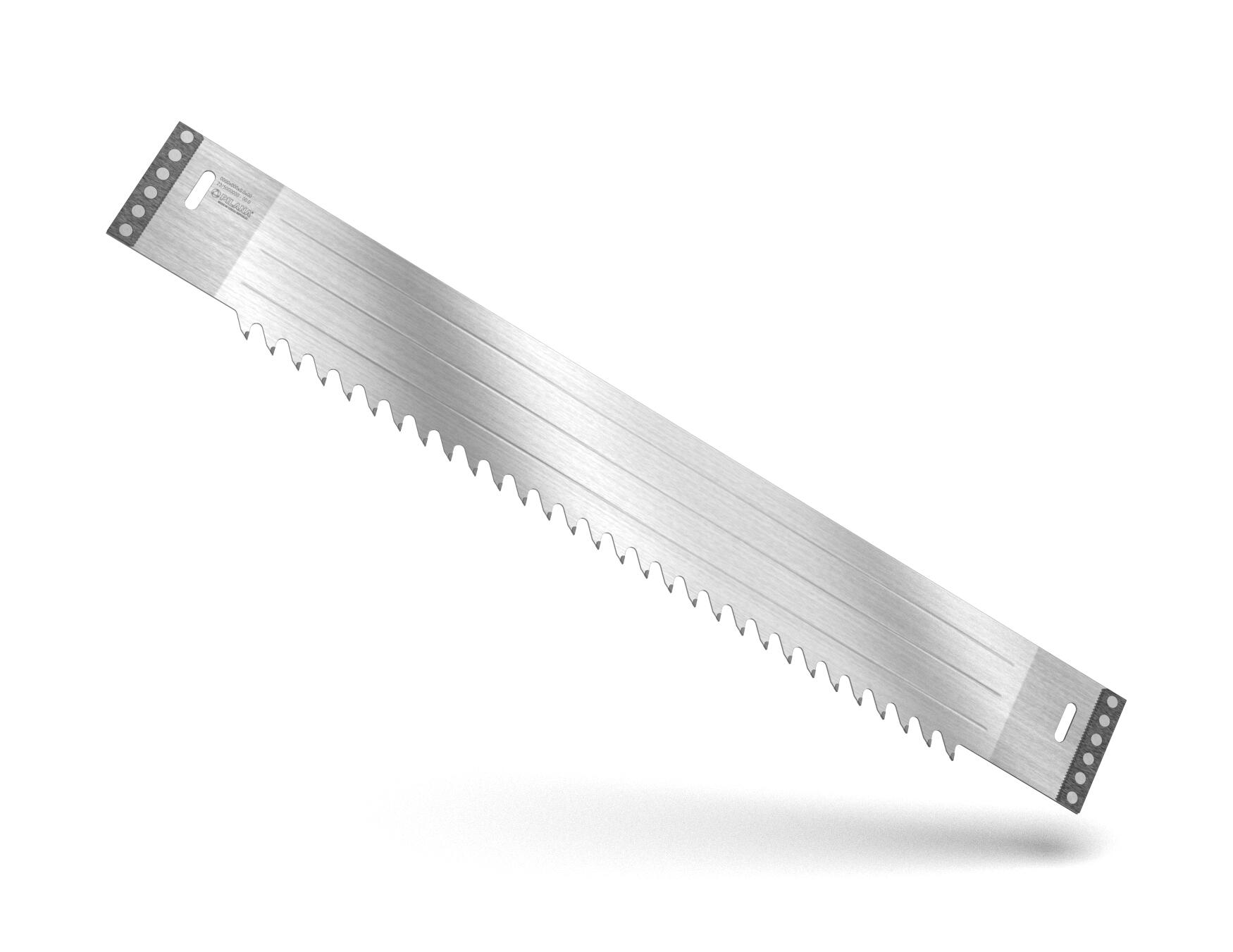

Gang saw blades - hard chromium coating - general information

In order to improve the mechanical properties and performance of the tool, it is possible to coat gang saw blades with a layer of hard chromium.

Characteristics:

» Higher resistance to wear - saw blades remain sharp for longer
» Protects saw bands against corrosion
» Smooth cut; band area is not stained with resin

Design:

Layer thickness is optional from 10, 15 and 20 microns; 15 microns is considered the standard thickness.
Hard chromium coating is applied across the entire band width (not only on teeth) and for this reason it can be utilised for the complete service life of the band.

Caution: New saw blades have to be profiled before teeth setting!

Items:
H
S
Material 75Cr1
Ni Steel
1 m = kg
140 mm
2.00 mm
Standard
2.1 kg
140 mm
2.20 mm
Standard
Optional
2.3 kg
160 mm
2.00 mm
Standard
Optional
2.4 kg
160 mm
2.20 mm
Standard
2.6 kg
180 mm
2.20 mm
Standard
3.0 kg
180 mm
2.40 mm
Standard
3.2 kg

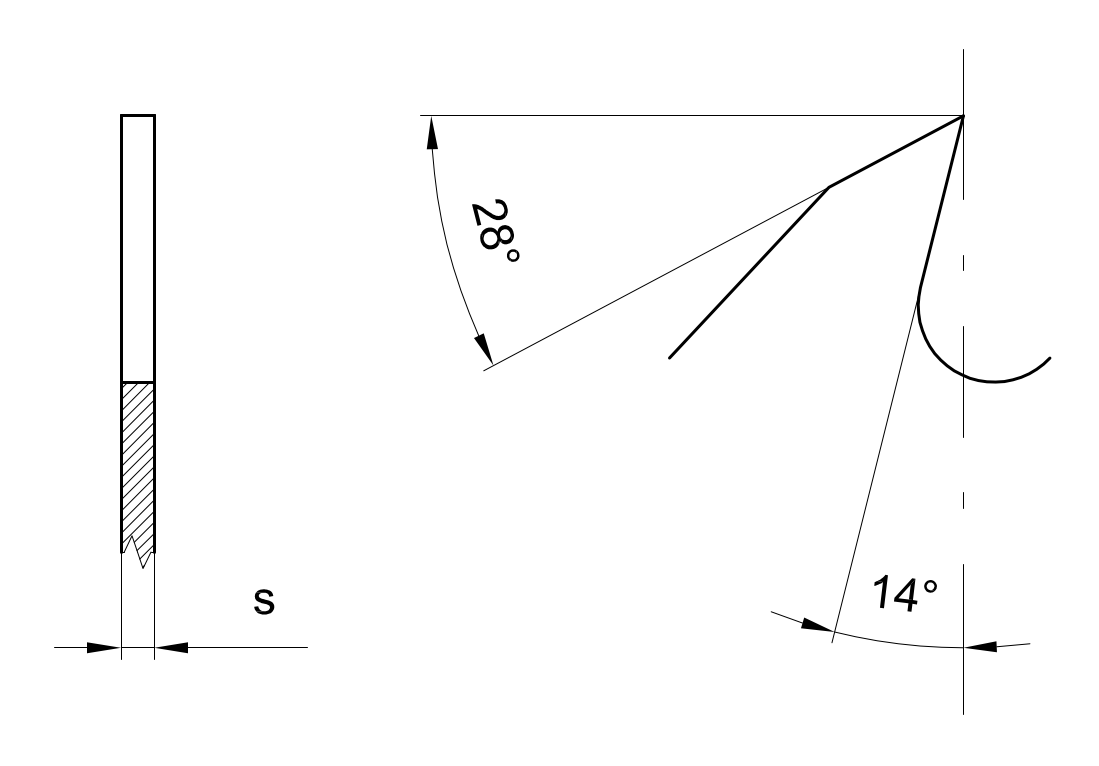

H = band width; S = band thickness
